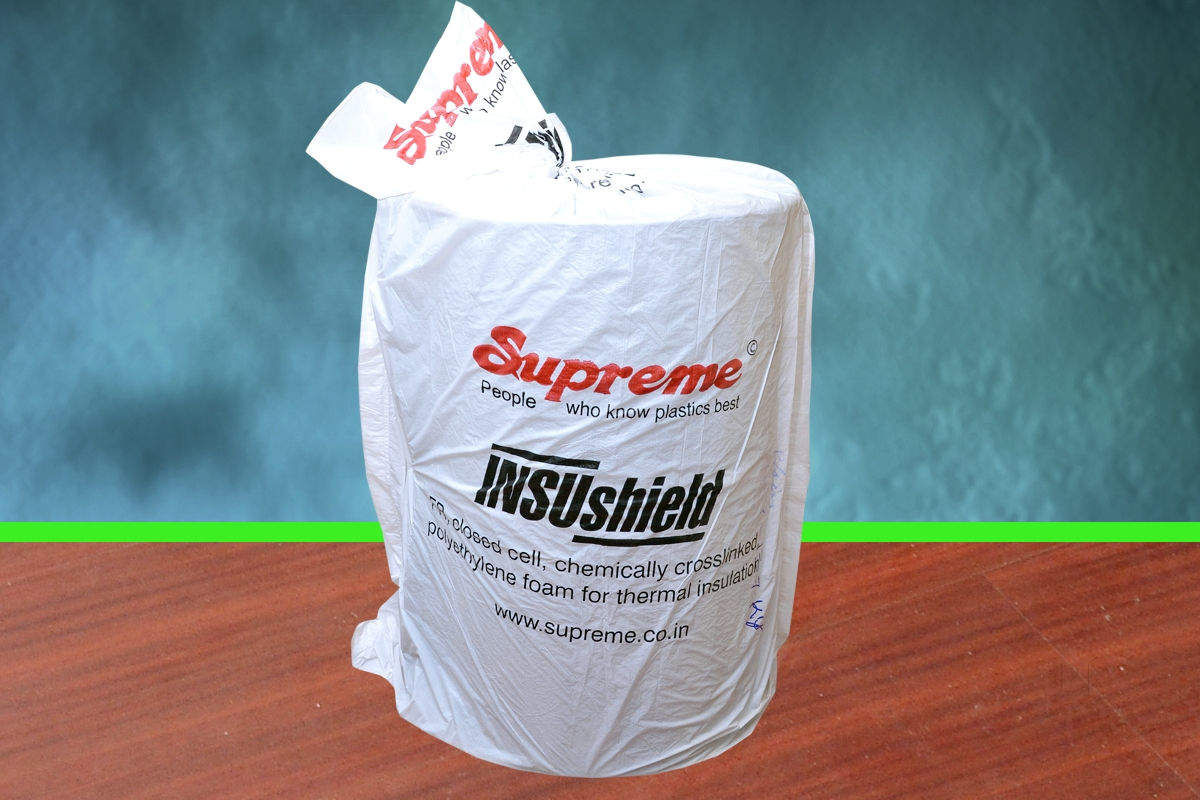

Supreme XLPE (Closedcell chemically crosslinked polyethylene)
INSUshield' is a non-fibrous, fire retardant (FR), closed cell, tri-dimensional chemically crosslinked polyethylene foam. It is certified 'Class O' in Fire Propagation and 'Class 1' in Surface Spread of Flame as per BS 476 Part 6 & Part 7 respectively. 'INSUshield' (chemically crosslinked polyethylene foam) is an ideal environment friendly insulation material, with a perfect solution for all your insulation needs for ducts, roofs, pipes, vessels etc. It is a better alternative to conventional Glass Wool insulation material. 'INSUshield' is also available in tubing form for pipe insulation.
Features
- ‘Class O' in fire propagation and 'Class 1' in surface spread of flame
- More than 90% closed cell - Negligible water/moisture absorption
- Wide operating temperature range from -40°C to + 115°C
- Low and stable 'K' value
- Chemically inert
- Resistant to growth of fungi and vermin
- Non-fibrous, non-toxic and non-carcinogenic.
- Environment & user friendly
- Ease of installation
Application
- HVAC duct insulation
- AC / Humidification duct insulation
- Underdeck insulation
- Pipe insulation
- Acoustic flooring etc.
Ideal for
- Pharmaceuticals and Textile mills
- Airports, Hospitals, Medical and Diagnostic centers
- Shopping malls and Multiplexes
- IT, BPOs and other Commercial buildings
- PEBs, Industrial, Factory and Poultry sheds
- Food processing industry
- Data centers, Server rooms, Standard rooms etc.
- Computerized control rooms for Petrochemicals, Power plants, Steel plants
- Manufacturing units, Networking stations and many more…
INSUsound
A range of high performance opencell xlpe foam for better sound absorption application. A Non fibrous, tridimensional chemically crosslinked Fire retardant Engineered Opencell PE foam for offers excellent sound absorption characteristics ideally suited in Duct Lining application. INSUsound offers a reliable permanent solution which doesnot disintegrate or particulate unlike conventional products.
Features & Benefits
- Long lasting no deterioration or particulation of foam - providing consistant performance through out the life span.
- Easy to apply - INSUsound has a flat surface on one side for better adhesion with Duct surface - Quick installation, Low adhesive consumption
- Inert to most of the chemicals - Suitable to use in challenging environments.
- Environment friendly manufacturing - CFC/HCFC free production.
- Available in roll form - Ease of handling & Installation.
Specifications
| Product / Specifications | PLAIN | ALUMINIUM FOIL |
|---|---|---|
| DENSITY | 30 +-3KG /M3 | 28 +-3KG /M3 |
| THERMALCONDUCTIVITY | 0.0328 W/mk @ 23o C | |
| FIRE PROPERTIES | BS 476 Part 7 | BS 476 Part 6&7 |
| SHEET THIKNESS | 10,12,15,20 & 25 mm | 10,12,15,20 & 25 mm |
| APPROVALS | UL CERTIFIED | IGBC |
