Armaflex Nitrile Rubber

Armaflex Nitrile Rubber

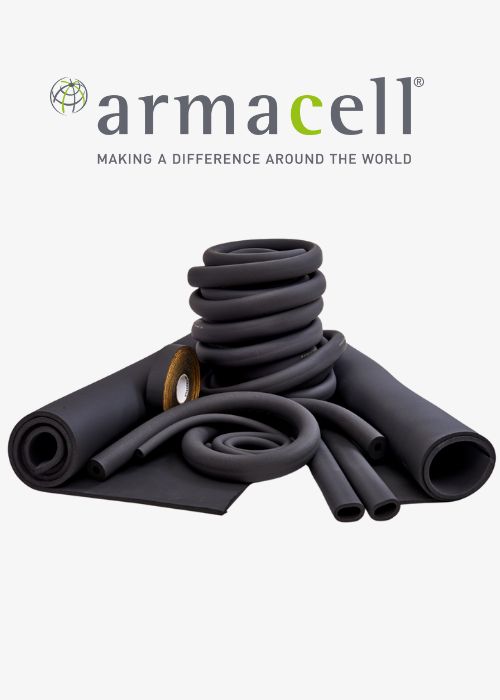

ArmaFlex Class 0 Nitrile Insulation Sheet/ Tubes

Highly flexible, closed-cell nitrile rubber insulation material with high water vapour diffusion resistance and low thermal conductivity. Class 0 fire classification according to BS 476 parts 6 and 7. Ideal for hot and cold water services, chilled water lines, heating systems, air conditioning ductwork, refrigerated pipework process and industrial pipework and equipment.

Product Features
    Brief description
  • ArmaFlex Class 0 is a flexible insulation material that reliably protects against water vapour ingress due to its closed-cell structure.
    • Material type
  • Elastomeric foam based on synthetic rubber.
    • Colour
  • Black.
    • Product range
  • Available in rolls (sheet) of 6mm, 9mm, 13mm, 16mm, 19mm, 25mm and 32mm thicknesses as well as tubes of 9mm, 13mm, 19mm, 25mm and 32mm thicknesses. Self-adhesive tubes are also available in 19mm, 25mm and 32mm thicknesses.
    • Special features
  • No additional water vapour barrier is required.
    • Applications
  • Thermal insulation/protection of pipes, air ducts and vessels (including elbows, fittings, flanges etc) in hot and cold water services, chilled water lines, heating systems, air conditioning ductwork and refrigerated pipework, installed in commercial, industrial, residential and public buildings to control condensation, protect against frost and reduce energy loss.
    • Safety and environment
  • Type III Environmental Product Declaration (EPD): Declaration number 4786944121.101.1, UL Environment.
    • Assembly
  • ArmaFlex can be used together with a variety of ArmaFlex adhesives such as, ArmaFlex Pipe Seal / ArmaFlex Duct Seal / ArmaFlex 520 adhesive and ArmaFix for a complete insulation system. Please refer to the ArmaFlex installation manual for advice.

Armaflex Class 0 Nitrile Insulation Sheet/ Tubes Benefits

Excellent fire performance
  • FM approved for the entire range of insulation thickness. Certified to conform to safety, reliability and performance standards of various local fire safety bodies.
Energy efficient

Low thermal conductivity minimizes energy losses to give long term energy.

Closed-cell structure

Minimises moisture penetration to ensure long-term protection against corrosion under insulation.

Environmentally safe

Zero ozone depletion potential and global warming potential.

Easy to install

Highly flexible elastomeric foam that can be installed quickly on irregular shapes and installations in tight spaces.

Condensation control

High resistance to water vapour ensures that the surface temperature remains above dew point, removing the need for an additional water vapour barrier.
